Details

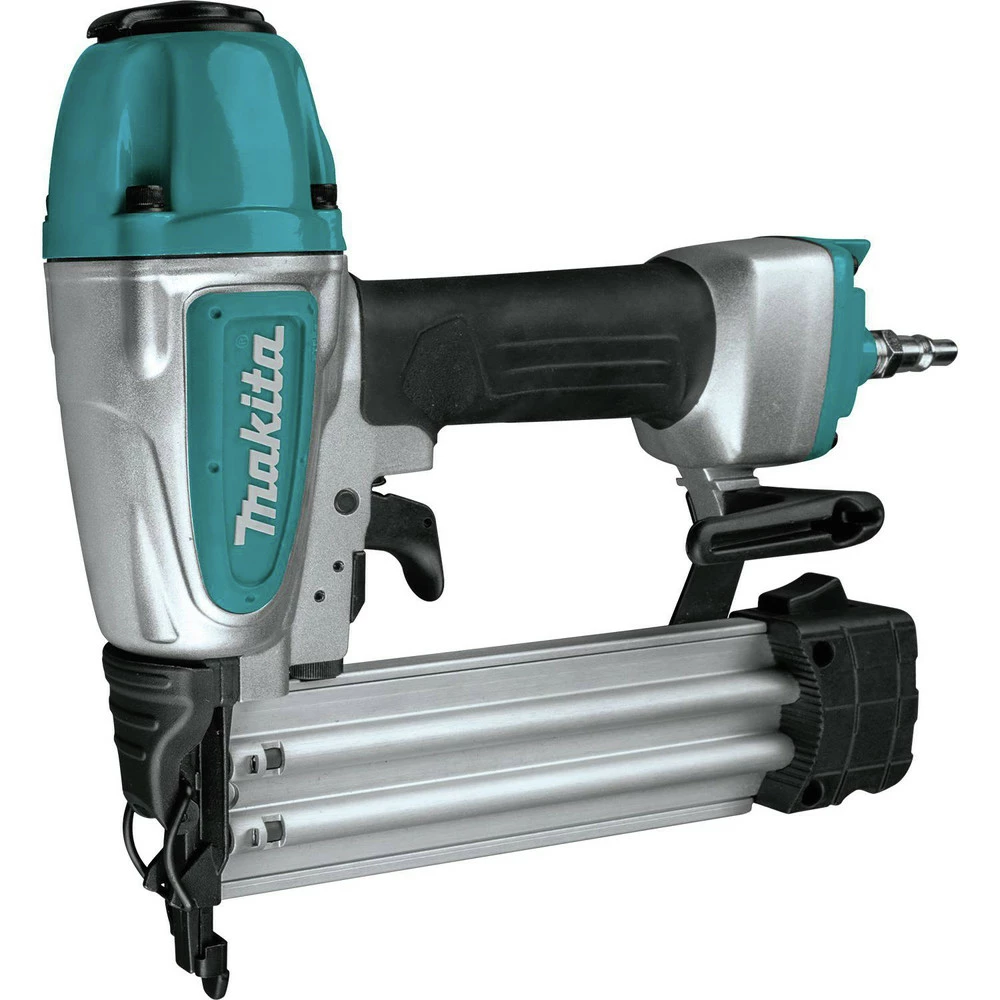

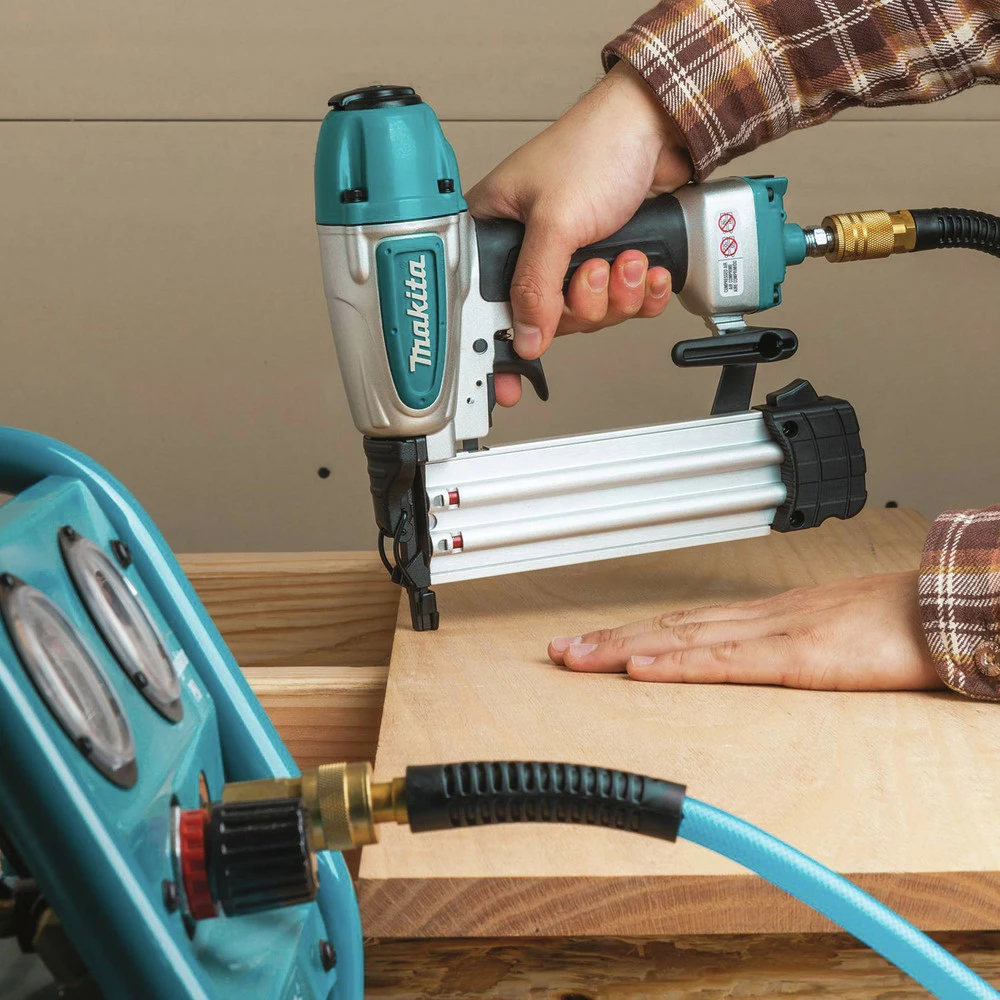

The Makita 18 Gauge 2 in. Brad Nailer (model AF506), features a durable and compact design with ease-of-use features including a narrow-nose design that makes it ideal for a wide variety of finish applications.
The AF506 can operate from 70 to 120 PSI, and drives a range of 18 gauge brad nails from 5/8 in. to 2 in., and has a magazine capacity up to 100 nails. The cast-and-machined nose piece is engineered for precise contact with the workpiece, with a non-marring rubber nose engineered to protect the work surface.
Additional features include an ultra-narrow nose design that is ideal for fastening in confined areas, and a convenient tool-less depth adjustment dial that can be set for a wide variety of finish applications. For added convenience, the multi-directional exhaust port rotates 360 Degrees to direct exhaust air away from the user. The AF506 is engineered for driving a range of 18 Gauge brad nails from 5/8 in. to 2 in. into hard or soft wood applications and is ideal for trim work, baseboard and crown molding installation, flooring and other woodworking applications.

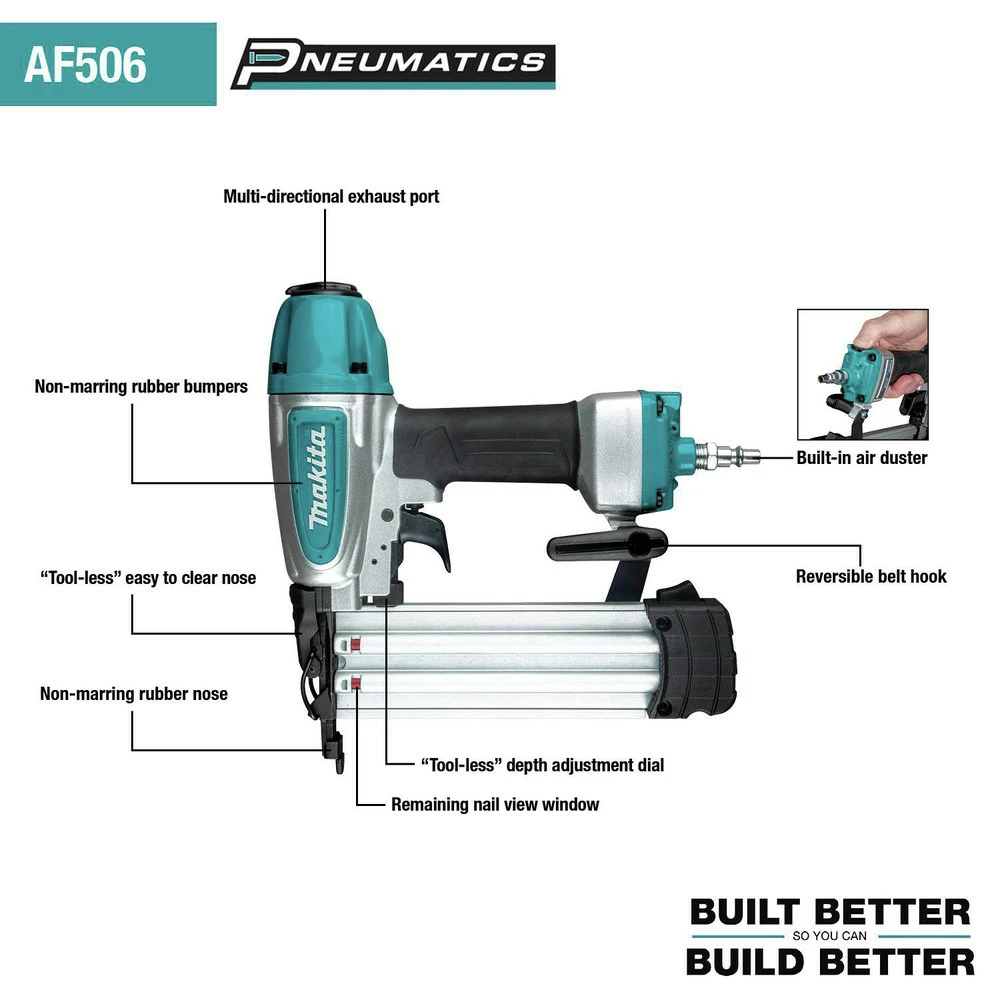

Features:
- Powerful motor drives a range of 18 Gauge brad nails from 5/8 in. to 2 in. into hard or soft wood applications
- Aluminum body, magazine and cylinder for strength and durability; weighs only 2.9 lbs.

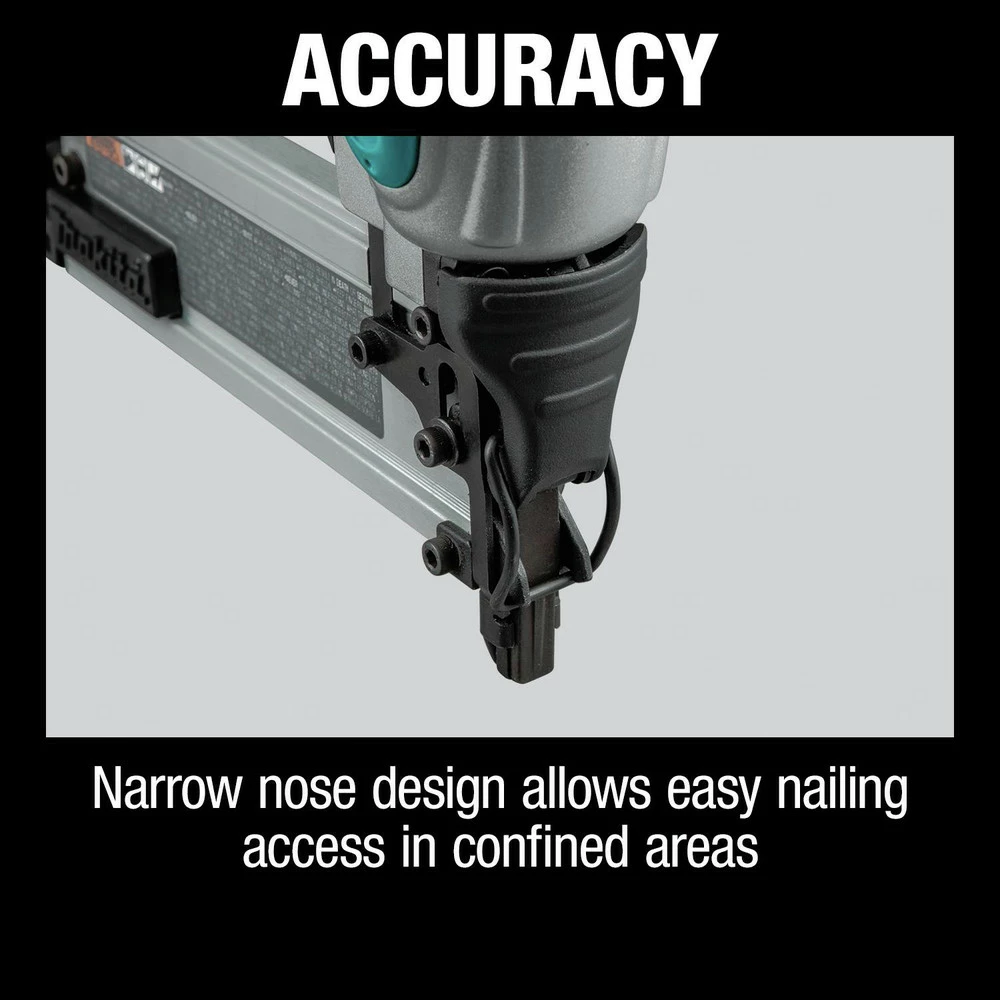

- Narrow nose design allows easy nailing access in confined areas

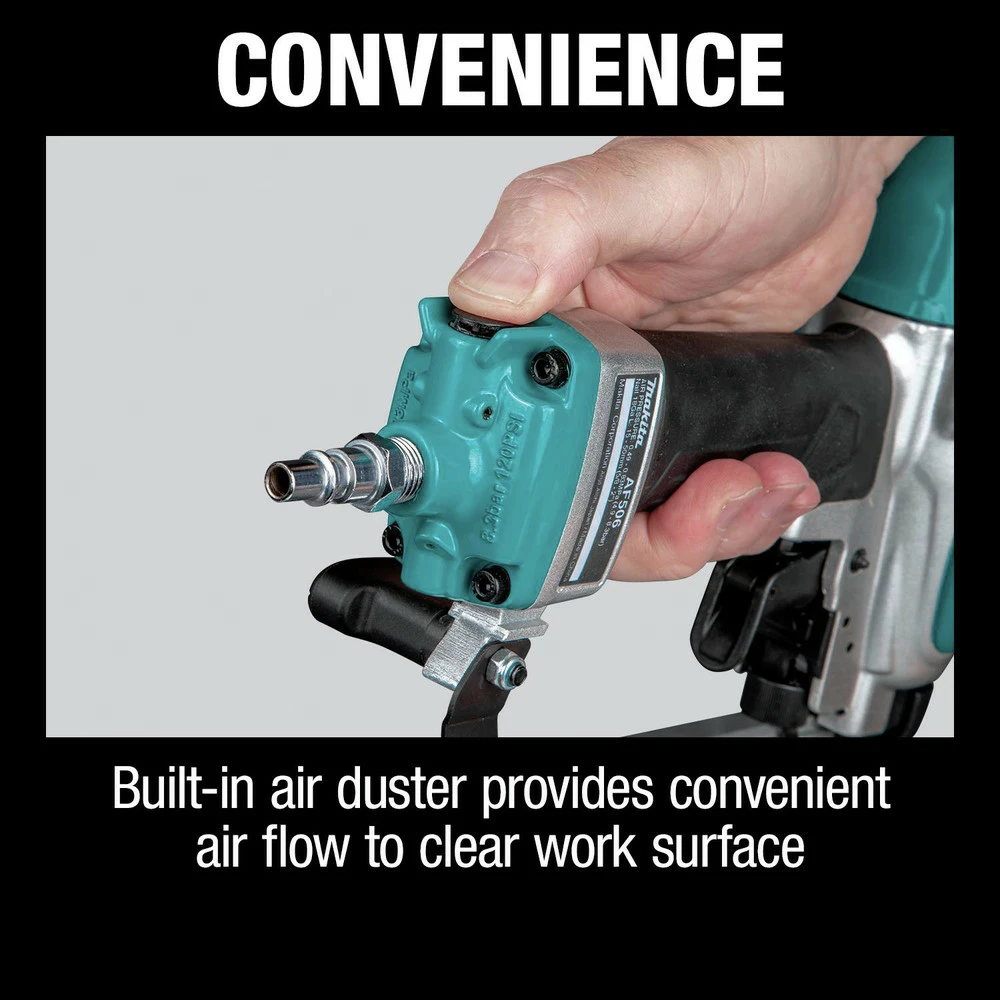

- Built-in air duster provides convenient air flow to clear work surface

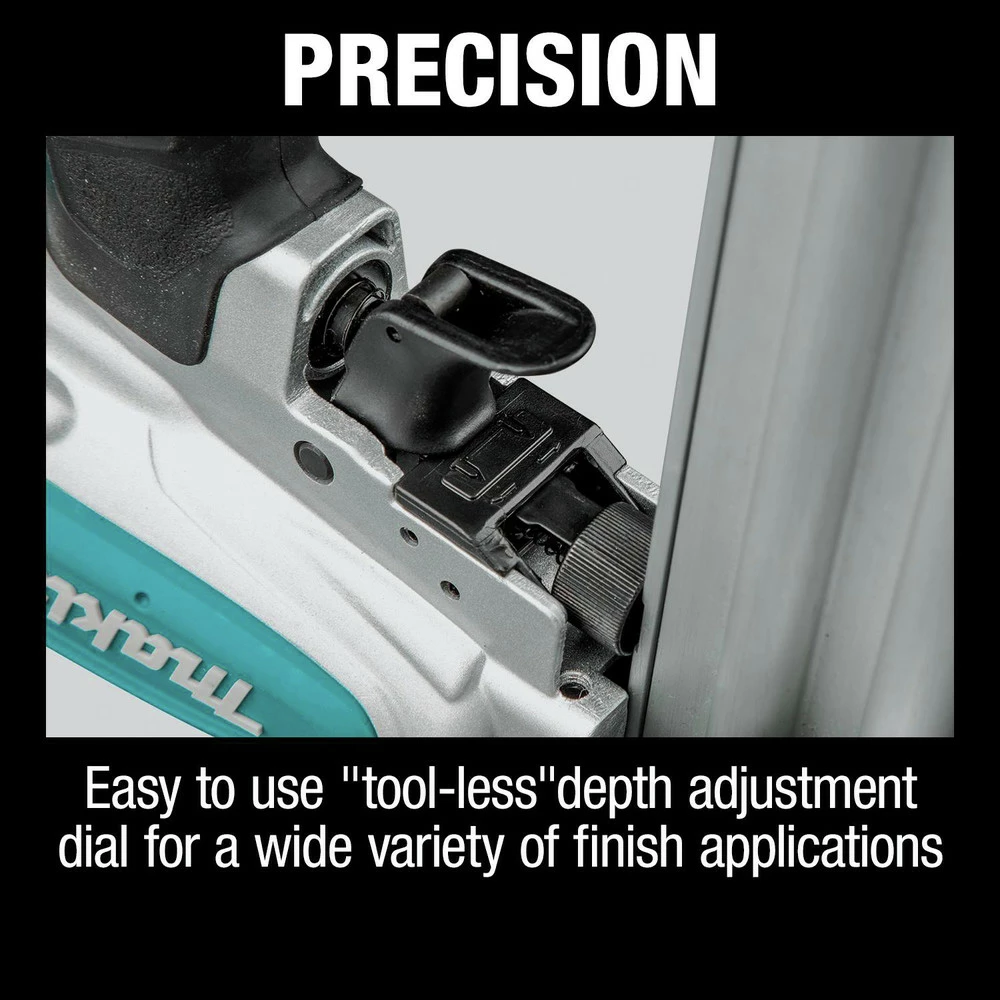

- Easy to use tool-less depth adjustment dial for a wide variety of finish applications
- Cast and machined nose piece for precise contact

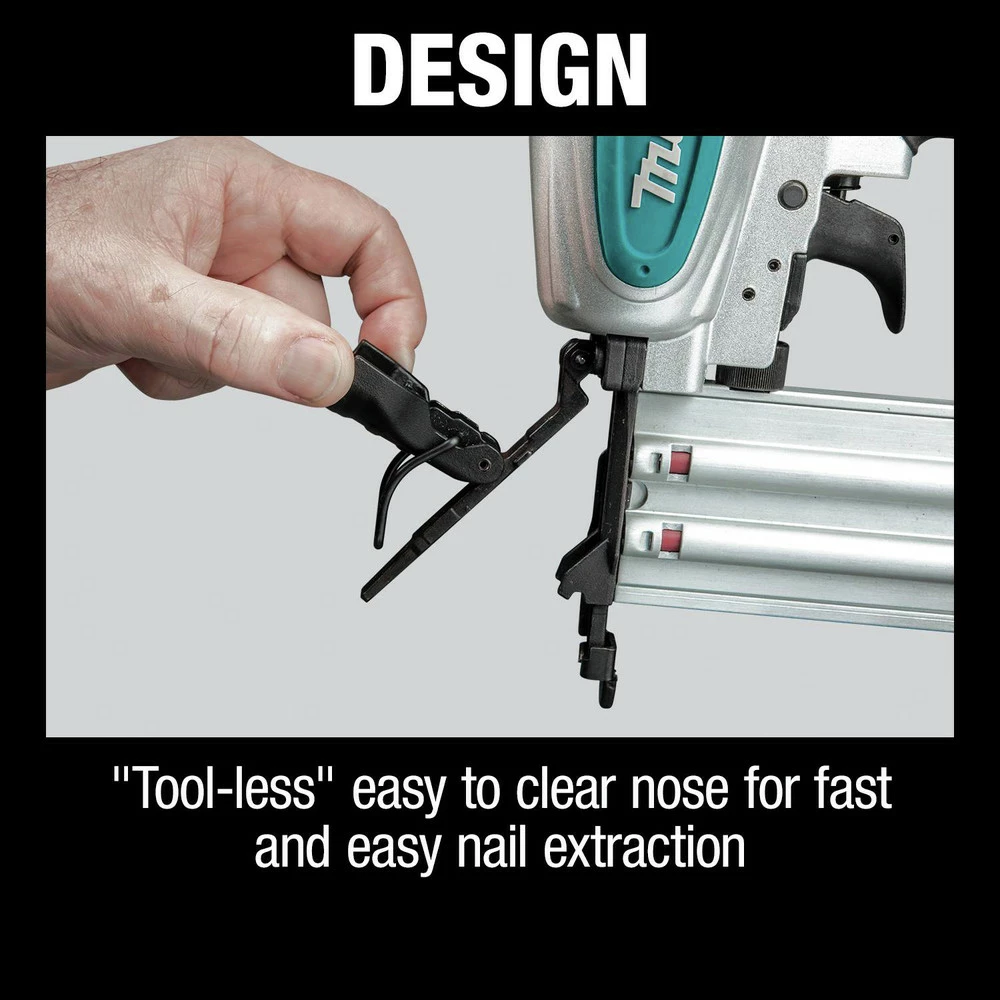

- Tool-less easy to clear nose for fast and easy nail extraction
- Non-marring rubber nose and bumpers protect the wood’s surface from being scratched or damaged
- Reversible belt hook allows the tool to remain close
- Dual nail reload indicator window alerts the user when to reload nails to avoid blank drives
What’s Included:
- 18 Gauge 2 in. Brad Nailer – AF506
- (2-Pc.) No-Mar Tips
- Air Fitting
- Pneumatic Nailer Oil
- Safety Glasses

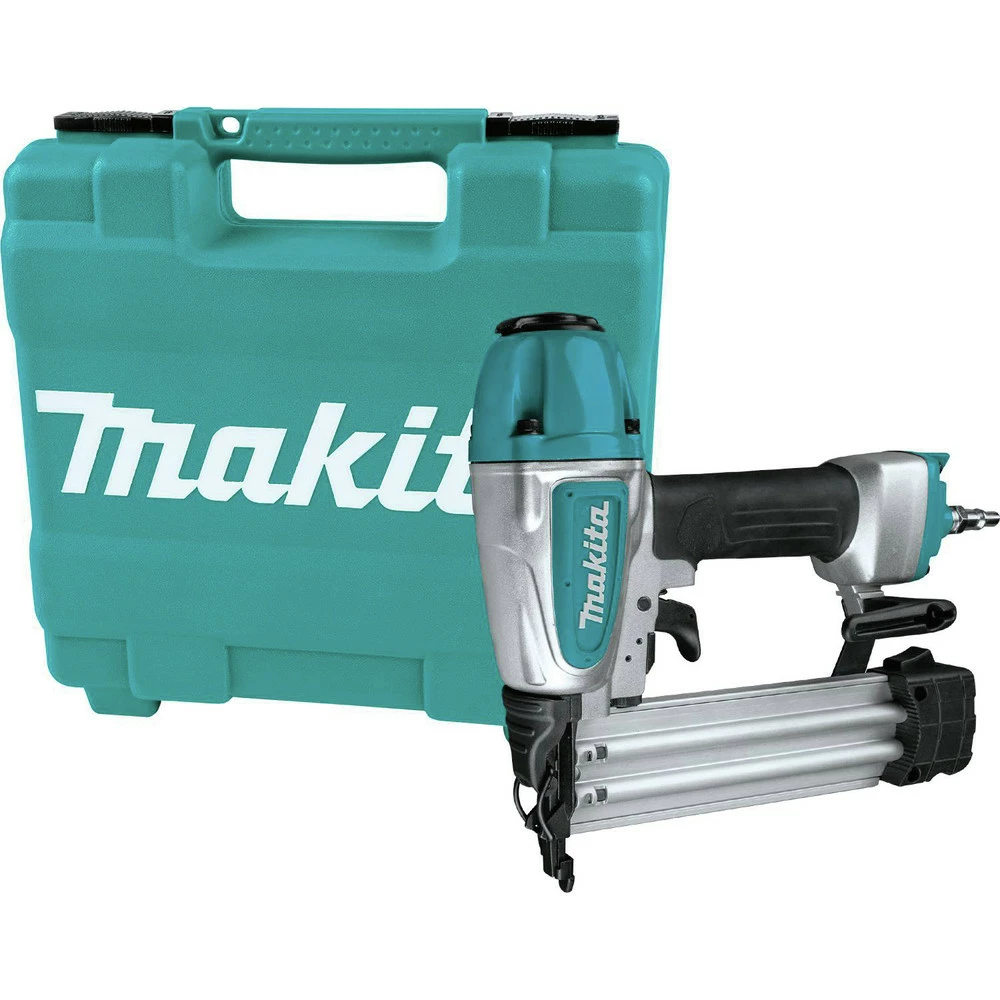

- Tool Case
| Power Source | Pneumatic |
|---|---|
| Air Inlet Size | 1/4 in |
| Drive System | Belt Drive |
| Fastener Type | Brad Nails |
| Fastener Length (Min.) | 5/8 in |
| Tip Style | No-Mar Tip |
| Fastener Length (Max.) | 2 in |
| Max. Fastener Length | 2 in |
| Operating Pressure (PSI) | 70 – 120 |
| Continuous Air Consumption (SCFM) | 2 |
| Fastener Capacity | 100 |
| Nail Gauge | 18 |
| Min. Fastener Length | 5/8 in |
| Fitting Type | NPT |
| Fastener Gauge | 18 |
| Average Air Consumption (SCFM) | 1.5 |
| Fastener Collation | Strip Collation |
| Depth of Drive | Adjustable |
| Magazine Type | Side Loading |
| Length | 9.875 in. |
| Width | 2.75 in. |
| Height | 10.125 in. |
| Weight | 2.9 lbs. |
| Warranty Term | 3 Year |
